Self-Hosting with Headscale
Aircast reaches your device over a tailnet — a private WireGuard mesh coordinated by a control server. By default that's Tailscale's hosted coordination service. If you'd rather own the whole path, point the device at your own Headscale server instead. No Tailscale account, no third-party coordinator — just your control plane and your devices.
Before you start
- A small always-on host with a public IP or DNS name for Headscale (a $5 VPS is plenty — it carries control traffic, not video).
- A domain with HTTPS for the control server. Headscale clients require TLS; terminate it with Caddy, a reverse proxy, or Headscale's built-in ACME.
- An Aircast device already flashed and reachable on your LAN — see Aircast.
Throughout this guide, replace https://headscale.example.com with your own control server URL.
Set it up
Deploy Headscale
Headscale reads its config at startup, so create the data and config directories first. Grab the example config and set server_url to your public URL:
mkdir -p ./config ./data
curl -fsSL https://raw.githubusercontent.com/juanfont/headscale/main/config-example.yaml \
-o ./config/config.yaml
# edit ./config/config.yaml → set: server_url: https://headscale.example.comThen start the container, mounting both directories:
docker run -d --name headscale \
-v ./config:/etc/headscale \
-v ./data:/var/lib/headscale \
-p 8080:8080 \
headscale/headscale:stable \
serveFront it with HTTPS so it's reachable at https://headscale.example.com — Headscale clients require TLS. Verify it's up:
curl -fsS https://headscale.example.com/healthSee the Headscale documentation for the full config reference and reverse-proxy examples.
Create a user
Devices register under a user (a namespace). Create one — the name is yours to pick:
headscale users create aircastIf you run Headscale in Docker, prefix these with docker exec headscale, e.g. docker exec headscale headscale users create aircast.
Mint a pre-auth key
A pre-auth key lets the device join unattended — no browser sign-in, no manual approval. This is the path Aircast is built around. Generate one for your user:
headscale preauthkeys create --user aircast --expiration 24hIt prints a long key. Copy it — you'll paste it into the device in the next step.

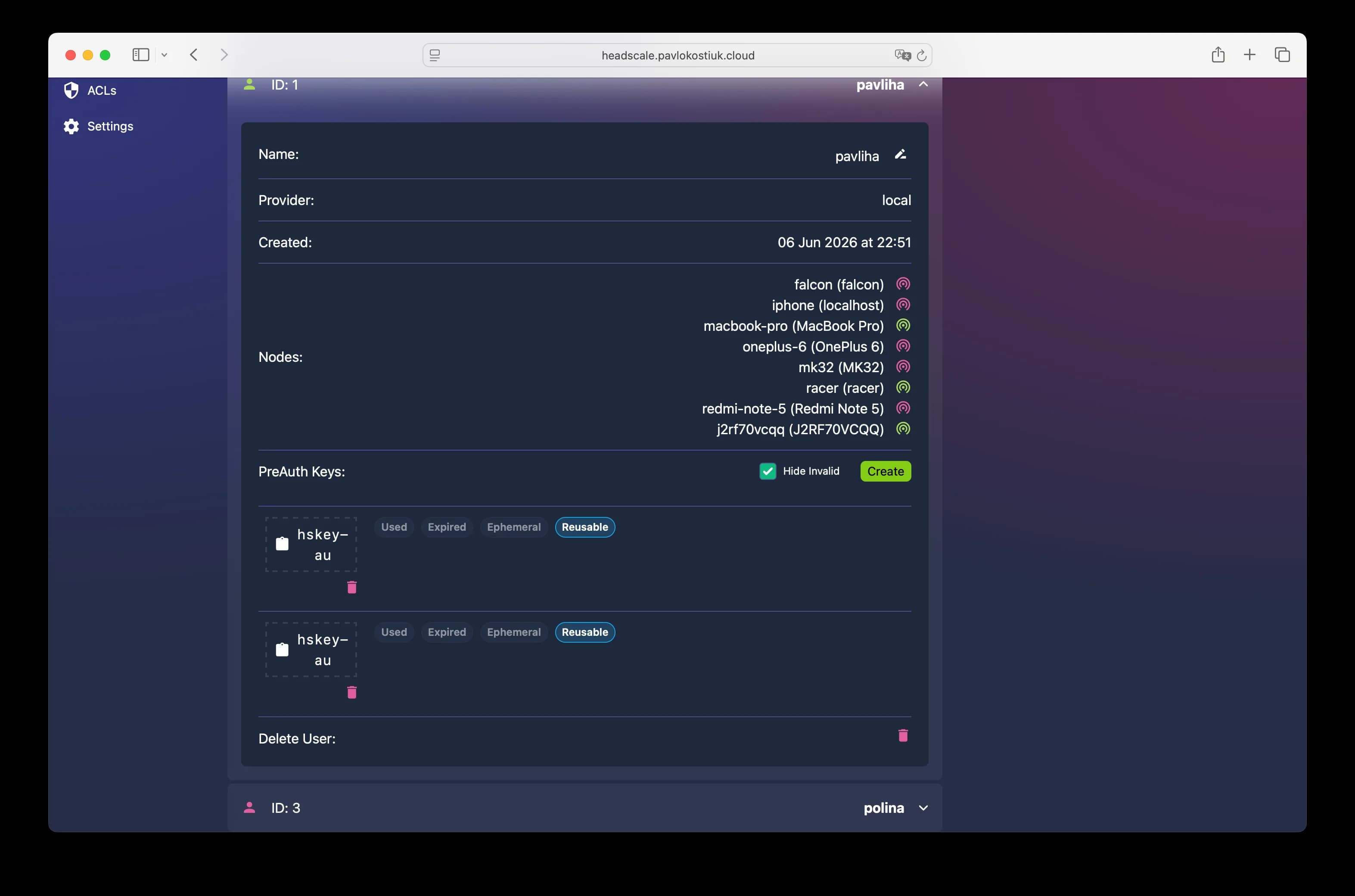

--reusable if you're provisioning several devices from one key, and --ephemeral for devices that should be dropped from the tailnet when they go offline. Set an expiration you're comfortable with — the key is a credential.Point the device at your server
Open the device dashboard on your LAN (http://<hostname>.local) and find the Tailscale section. Expand the control-server settings and enter:
- Control server — your URL, e.g.
https://headscale.example.com - Auth key — the pre-auth key from step 3
Save, then Connect (or Switch, if the device is already on another tailnet). The device registers itself against your Headscale and appears under the aircast user within a few seconds — no approval step.
Confirm it joined
On your control-server host, list the registered nodes:
headscale nodes listYour device shows up with an assigned tailnet IP. The dashboard's Tailscale section now reads Connected with its tailnet name. You can reach the device at that address from anywhere on the same tailnet.
Manage it from a browser

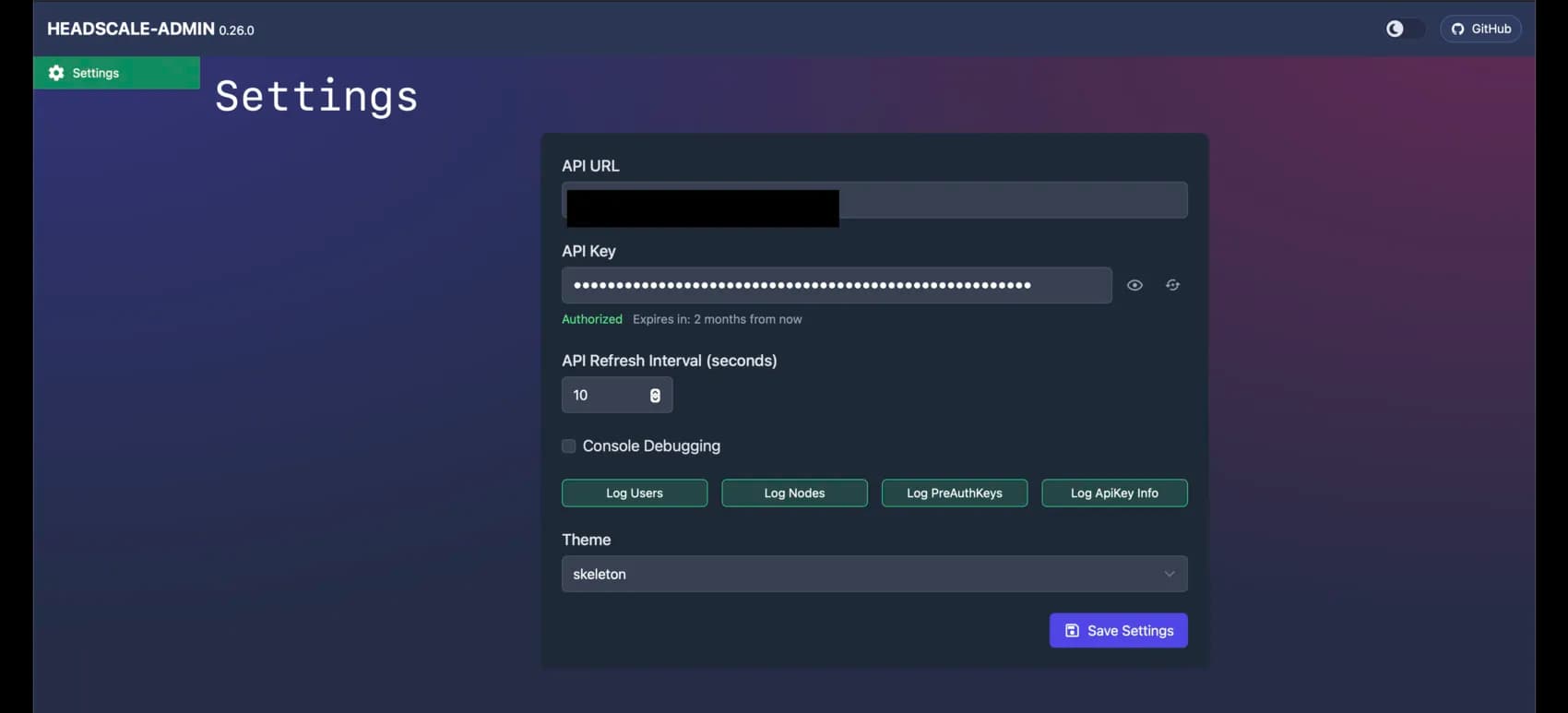

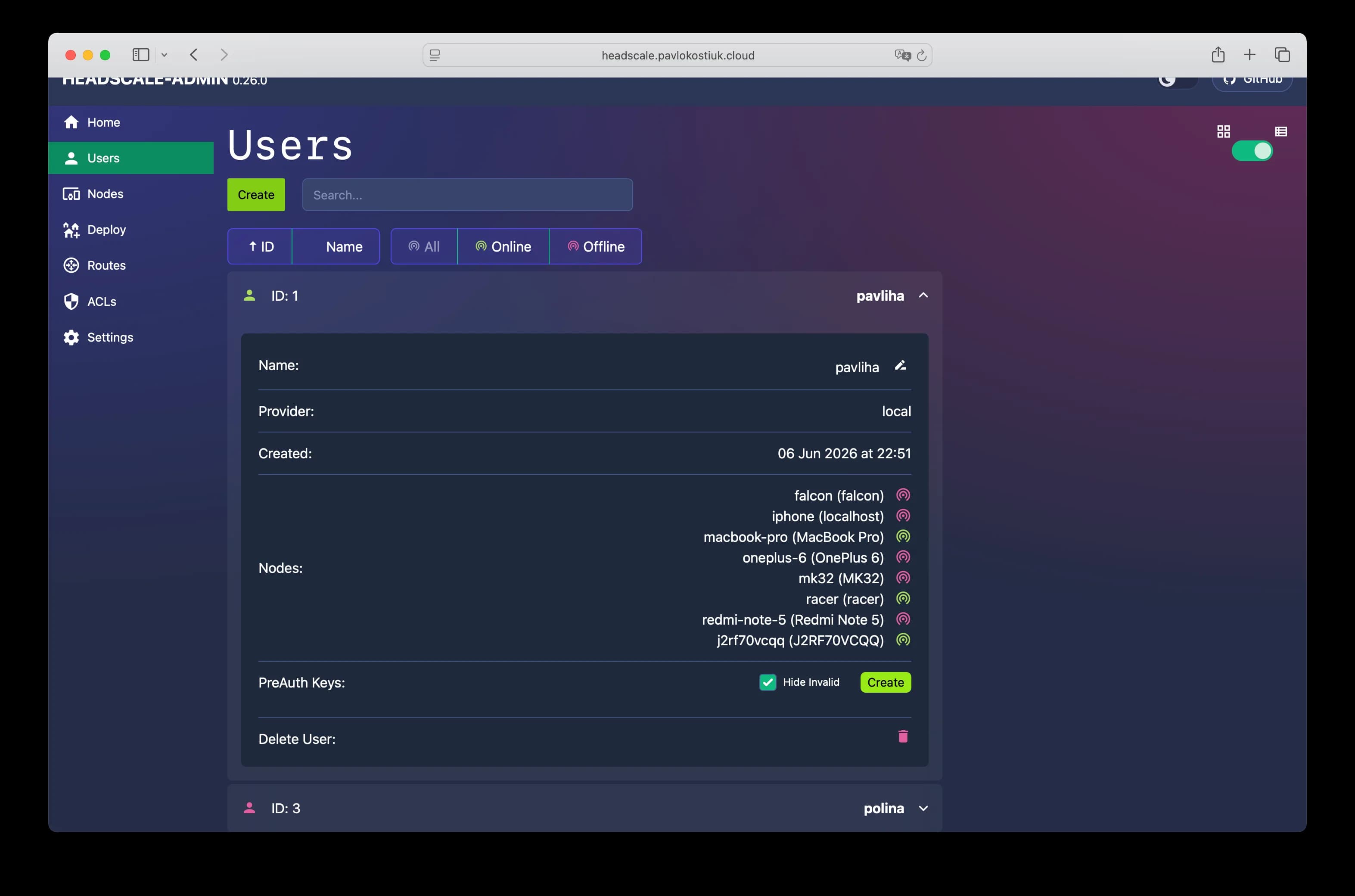

Everything above works from the CLI, but a web UI like headscale-admin is handy for day-to-day node and user management. Point it at your server: open its Settings, set the API URL to your control server, and paste an API key from headscale apikeys create. Once it reads Authorized, you're connected.

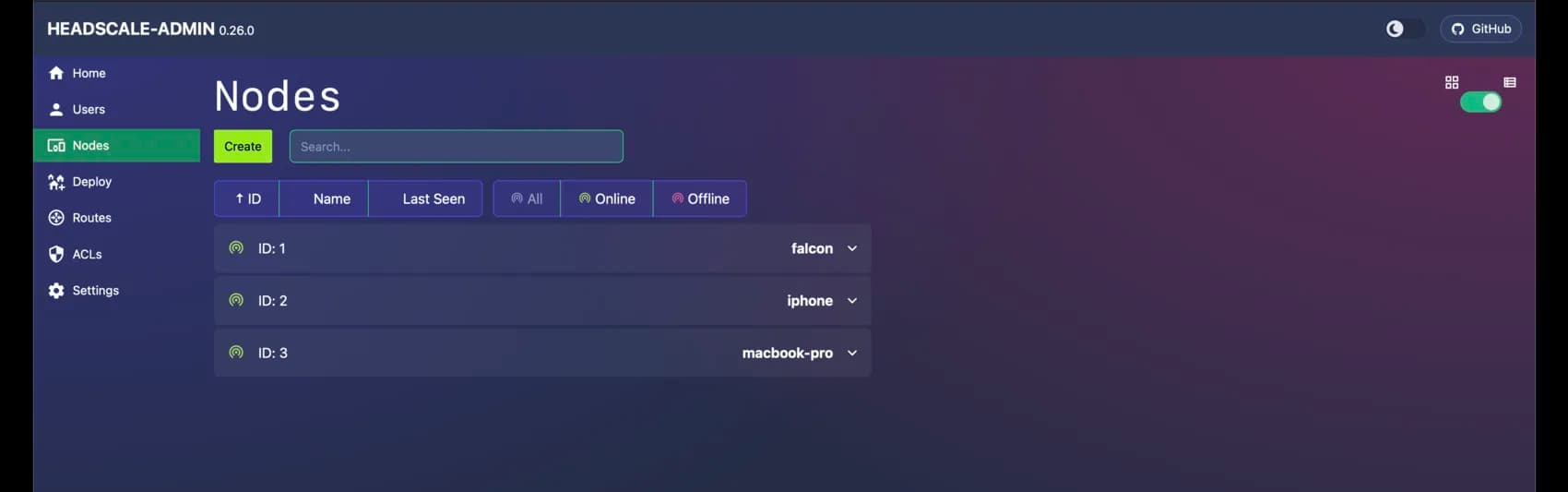

The Nodes tab then lists every registered device with its online status — your Aircast device shows up here alongside any phones or laptops on the tailnet.
Join your viewing devices

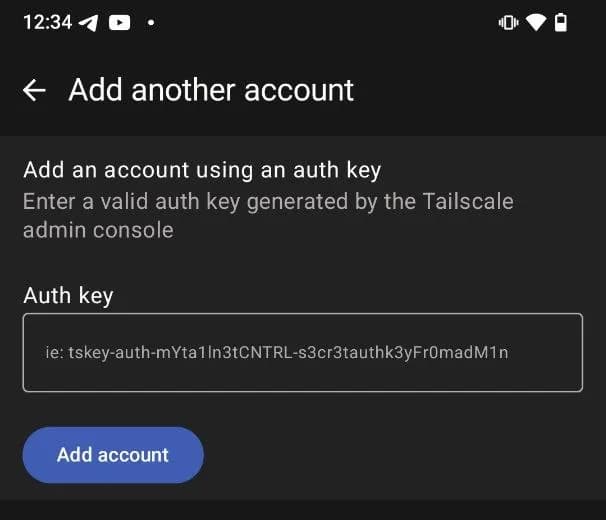

To watch the stream, the device you view from — a phone or laptop — also needs to be on your tailnet. In the official Tailscale app you can point at a self-hosted Headscale instead of Tailscale's servers: add an account with Use an alternate server (enter your URL) or Use an auth key (paste a pre-auth key).

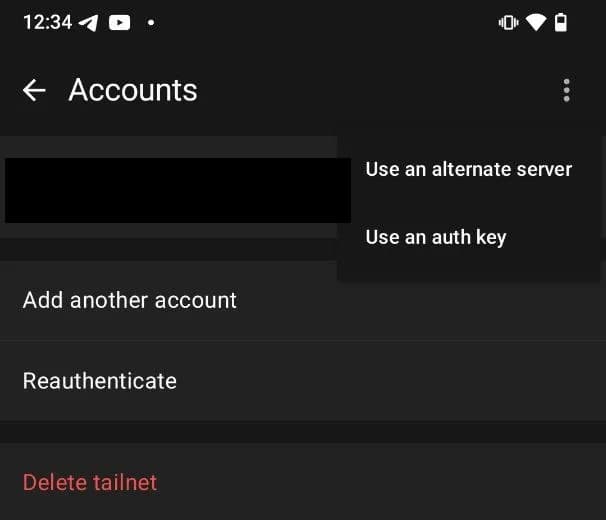

On a phone, open the account menu and pick one of the two options:

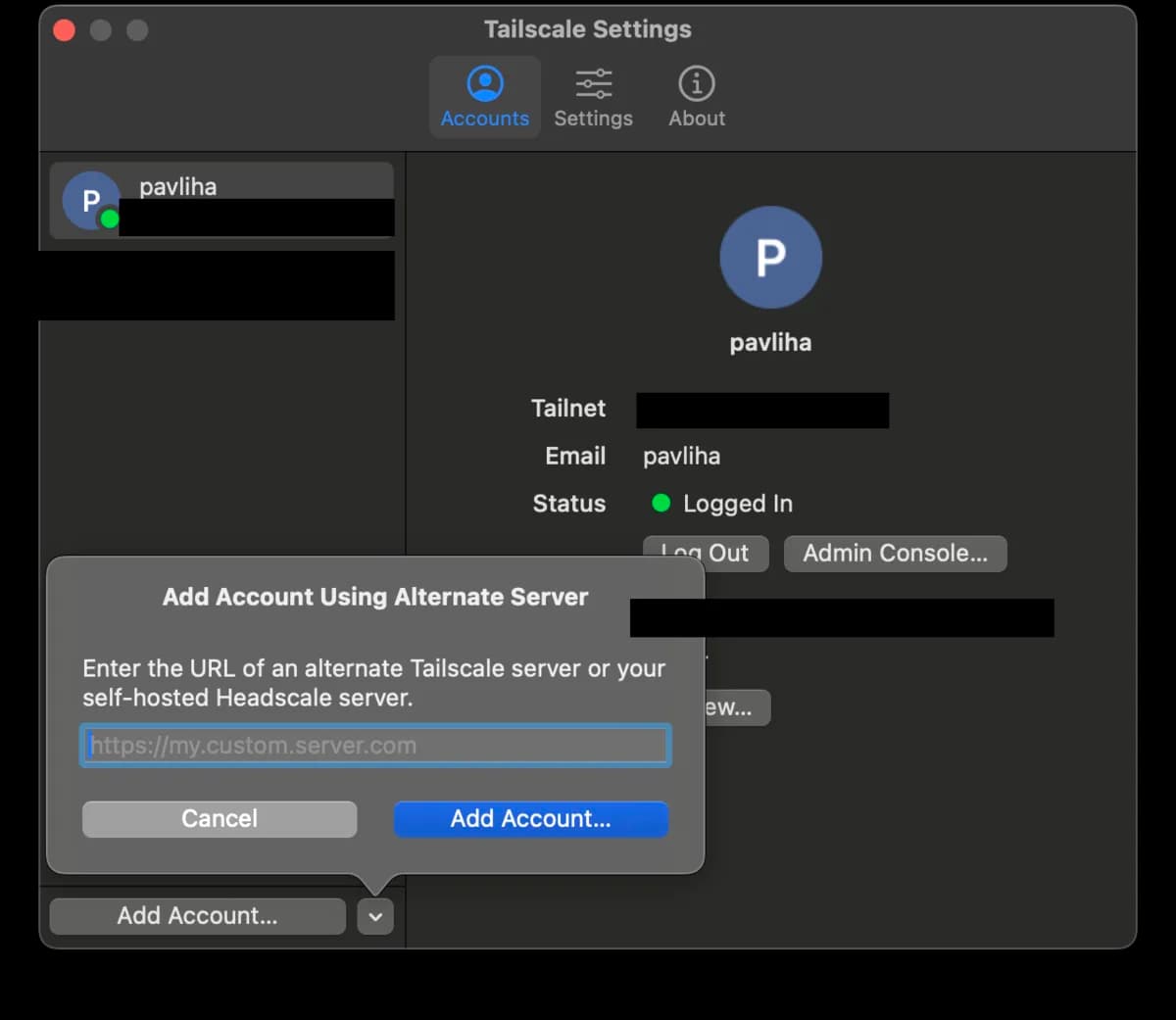

On macOS or desktop it's the same — Add Account → Use an alternate server, then enter your Headscale URL:

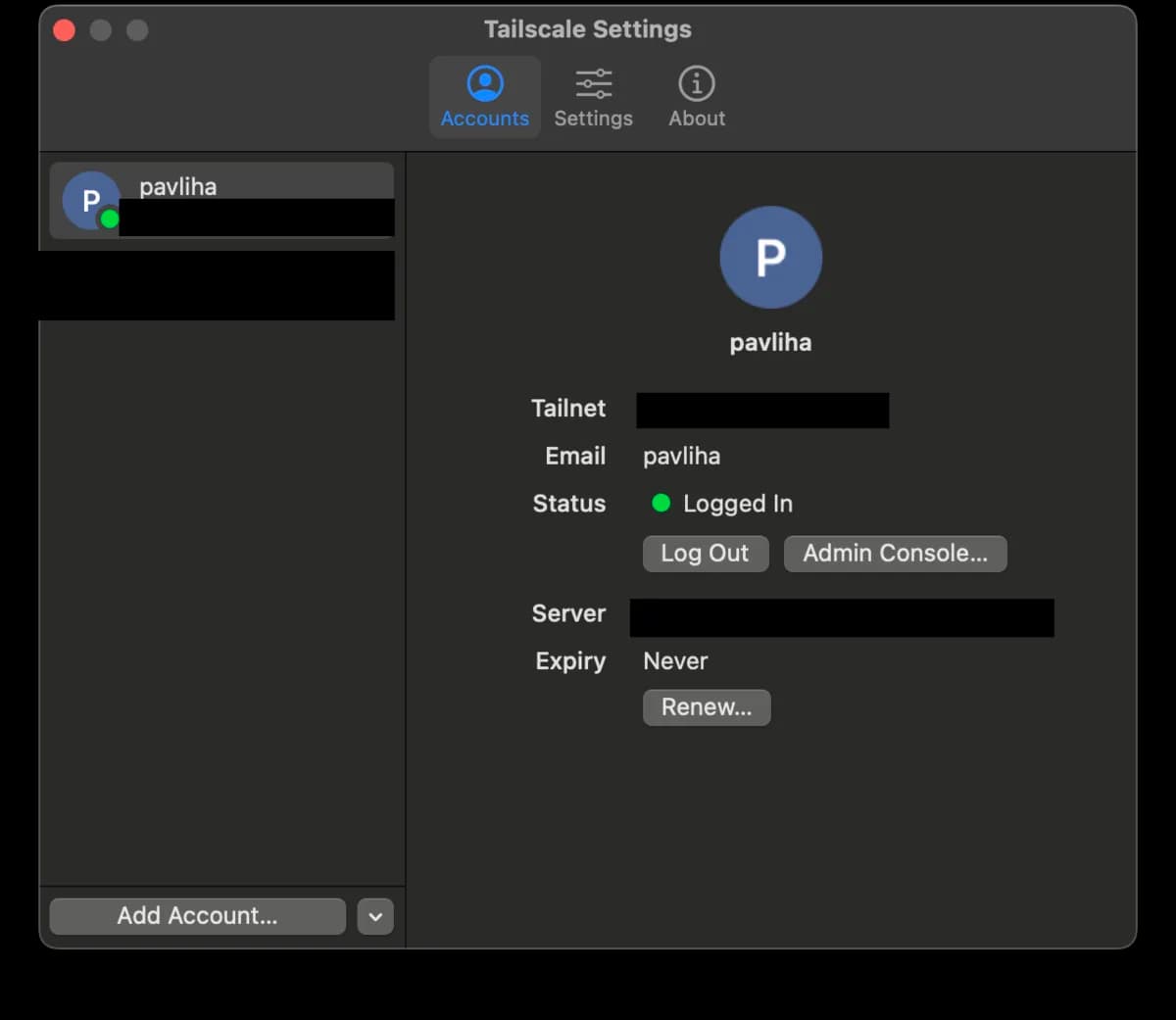

Once it connects, the account's Server shows your Headscale URL — confirmation the device is on your control plane, not Tailscale's:
On the CLI it's tailscale up --login-server https://headscale.example.com (interactive) or the same with --authkey (unattended).
Connect QGroundControl over the tailnet
With both ends on the tailnet, your ground station reaches the device by its tailnet address — no port forwarding, no public exposure. In QGroundControl, wire up telemetry and video to the device's tailnet IP/hostname.
Telemetry (MAVLink)

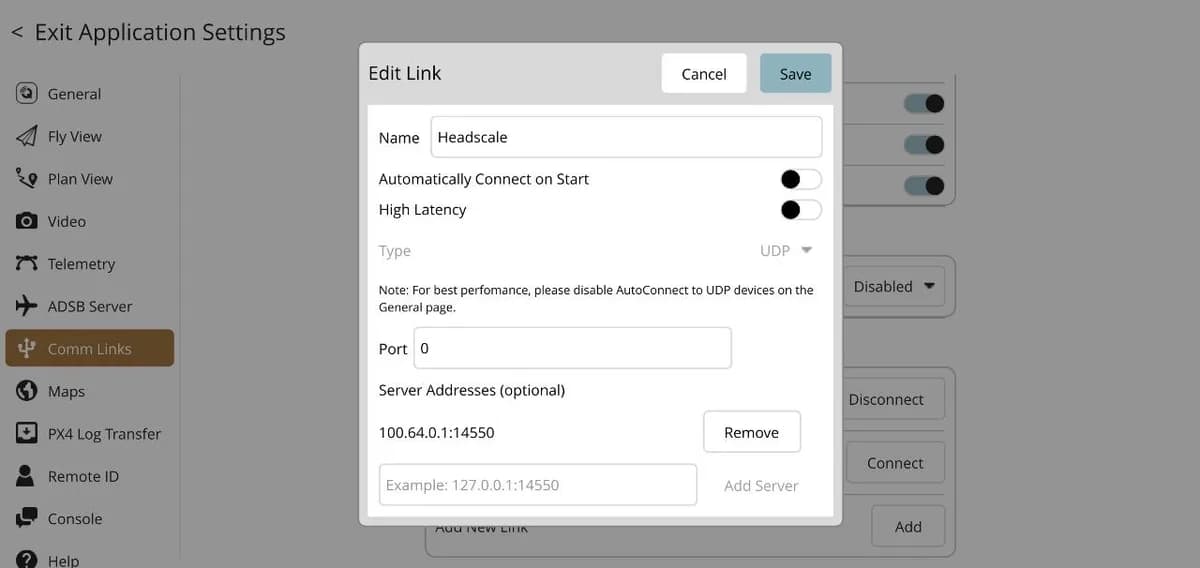

Open Application Settings → Comm Links → Add. Create a UDP link and add a server address pointing at the device's tailnet IP on the MAVLink port — typically <device-tailnet-ip>:14550:

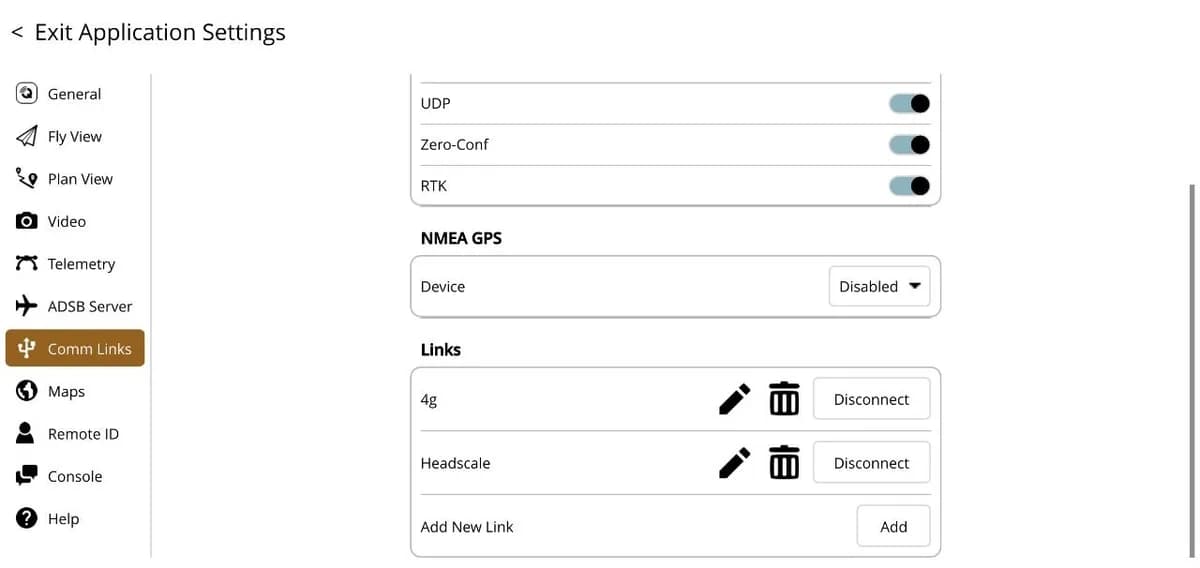

Save it, then Connect — it sits alongside any other links (e.g. a direct 4G link) so you can switch between paths:

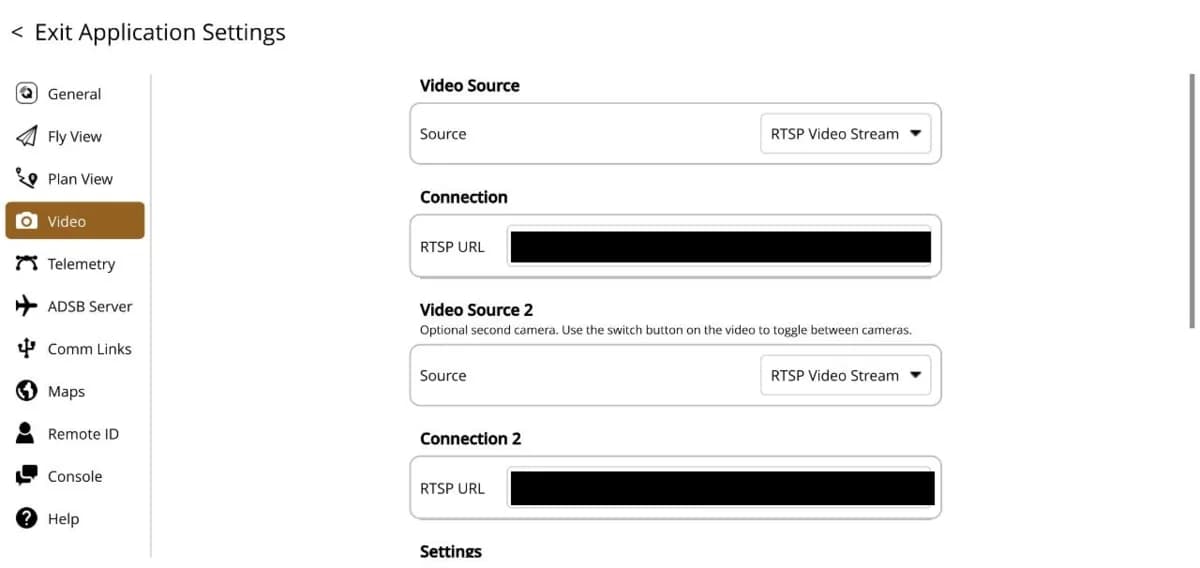

Video (RTSP)
Under Application Settings → Video, set the source to RTSP Video Stream and the URL to the device over the tailnet: rtsp://<device-tailnet-host>:8554/cam. A second source lets you toggle between cameras.

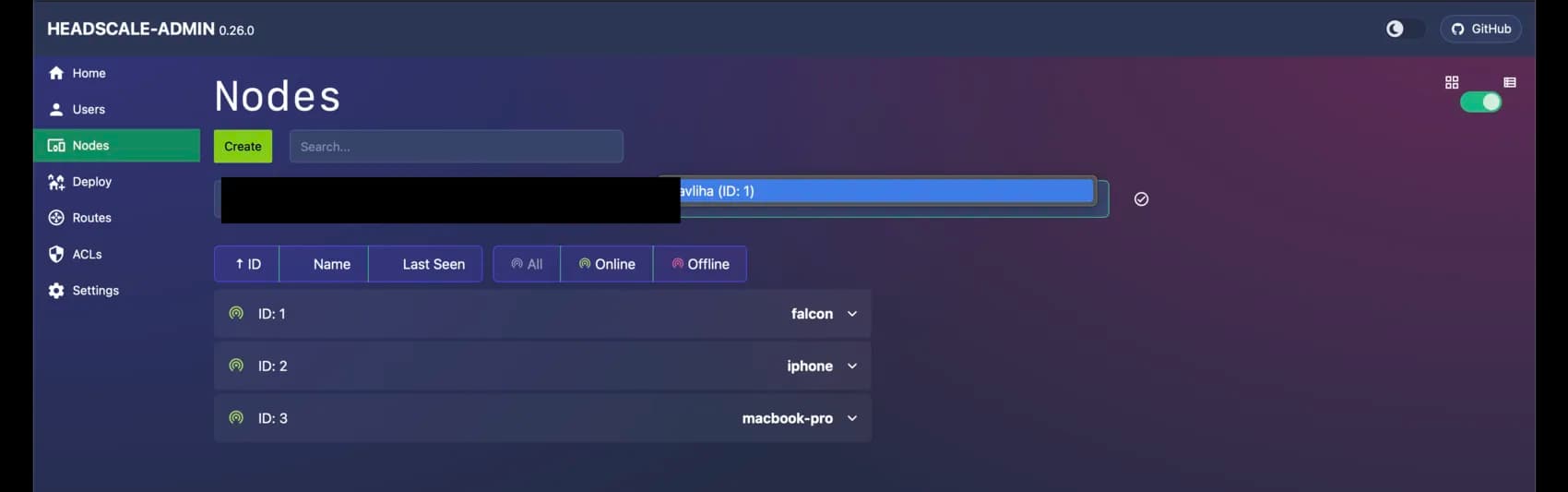

Troubleshooting: “key hex string doesn't have expected type prefix mkey:”
mkey: prefix. The field wants the full prefixed key, not the bare hex.

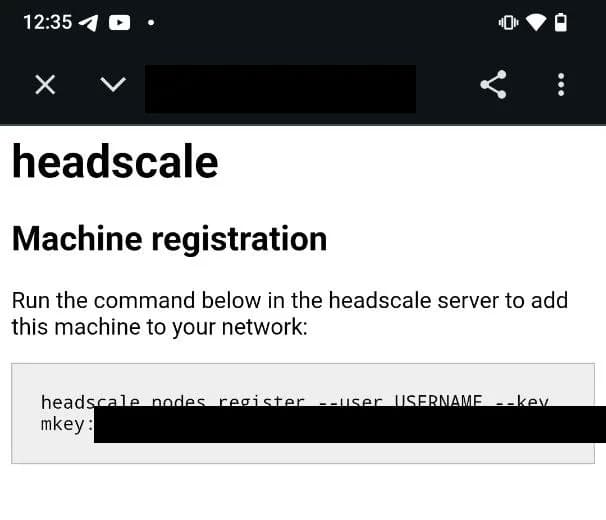

Where does the key come from? A node can't be created from a hostname — it only exists once the device starts registration, which is what generates its machine key. When a client signs in to a self-hosted Headscale interactively, it shows a Machine registration page with a ready-to-run command. The value after --key — including the mkey: prefix — is exactly what the form expects.

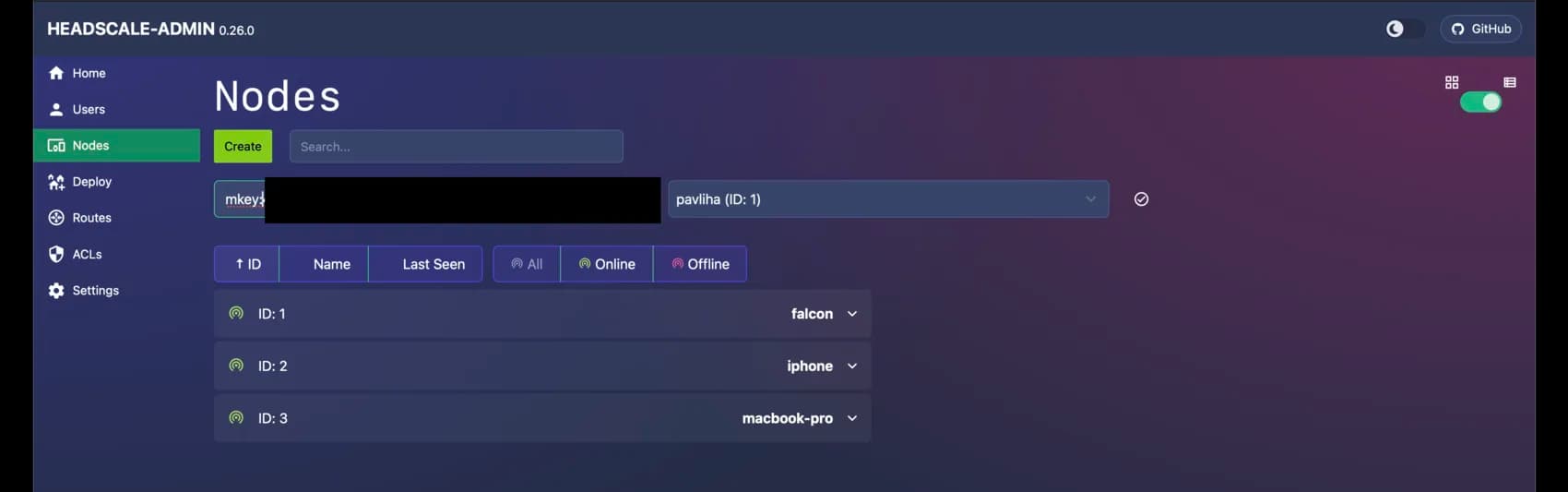

Paste that full mkey:-prefixed value into the Create form, pick the user, and submit — the node registers cleanly.
mkey: to copy, no Create form, no approval.On This Page
