    SIM7600G-H 4G HAT (B) Setup Guide

    What You'll Achieve

    A reliable 4G LTE uplink through the SIM7600G-H HAT. The Aircast image recognises this modem and sets it up for you: it switches the modem into QMI mode and brings the connection up over NetworkManager. There are no AT commands and no manual networking to run.

    Time needed: ~10 minutes (mostly flashing)
    Difficulty: Easy, with no terminal commands

    Why the SIM7600G-H HAT?

    • Auto-configured. Aircast detects the SIM7600 family and sets it up on first boot
    • HAT form factor: mounts straight onto the Raspberry Pi
    • Global coverage: the SIM7600G-H is a multi-band, worldwide LTE modem
    • External antennas: better signal at altitude than a bare USB stick
    SIM7600G-H 4G HAT (B)

    LED Status Indicators:

    • Blinking NET LED: registered on the network
    • Solid / off NET LED: searching or not registered, so check the SIM, antenna, and signal

    Safety Notice

    Power the Pi off before seating or removing the HAT. The Pi 4 runs hot under load, so keep it cooled and ventilated, and never hot-plug the HAT while the Pi is powered on.

    Before You Start

    Make sure you have everything ready:

    • SIM7600G-H 4G HAT (B): the modem board with its LTE and GPS antennas
    • Raspberry Pi 4 or Zero 2 W: flashed with the Aircast image
    • Cooling solution: active cooling case or a heatsink with fan
    • SIM card: with an active data plan and no PIN lock (or know the PIN)
    • USB cable: to link the HAT's USB port to the Pi

    1. Wire up the HAT

    Power the Pi off first. Seating a HAT on a live Pi can damage both boards.

    Mount the HAT on the Pi, insert the SIM card, and screw on the LTE and GPS antennas. Connect the HAT's USB port to a USB port on the Pi. That USB link carries the modem data, so it's required even though the HAT sits on the GPIO header.

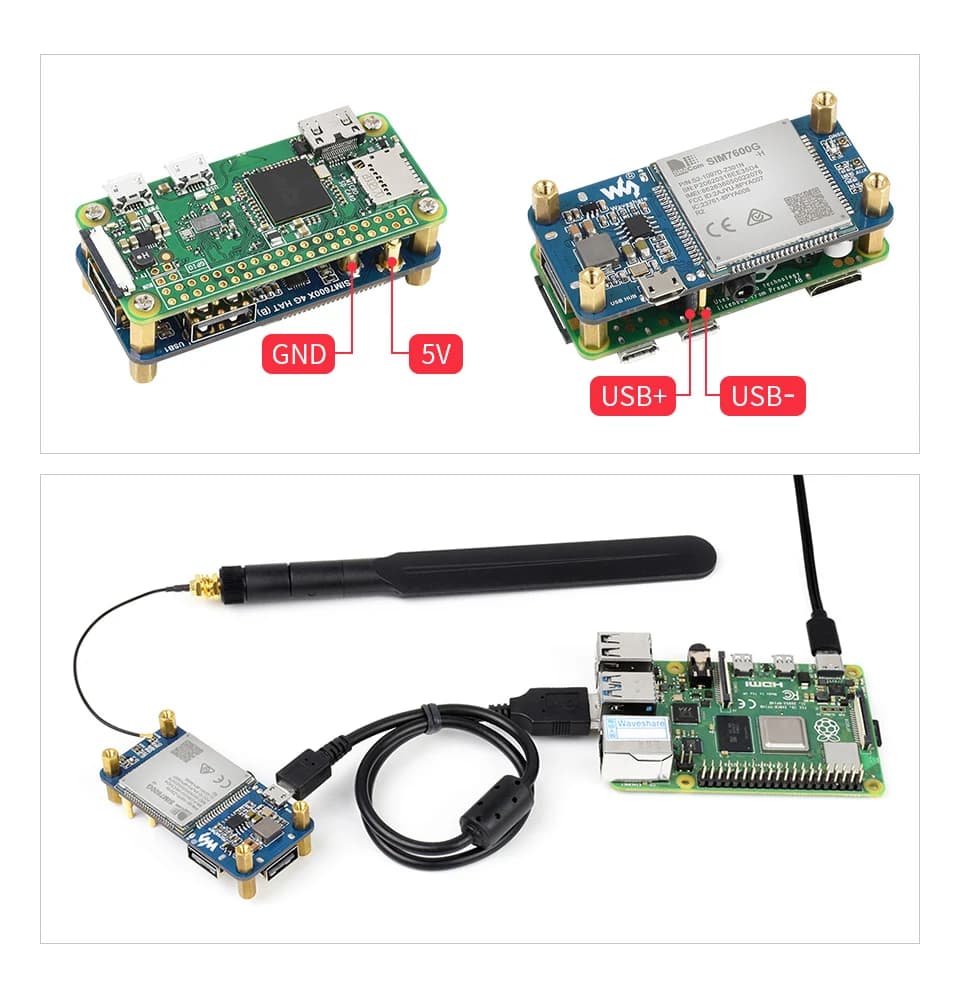

    SIM7600G-H 4G HAT connection example

    2. Flash and boot, and the modem configures itself

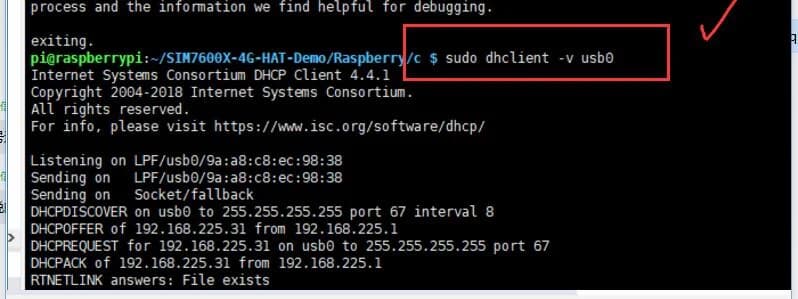

    Flash the Aircast image, then power on the Pi. On first boot Aircast detects the SIM7600, switches it into QMI mode, and NetworkManager dials the connection with the default internet APN. Nothing to type.

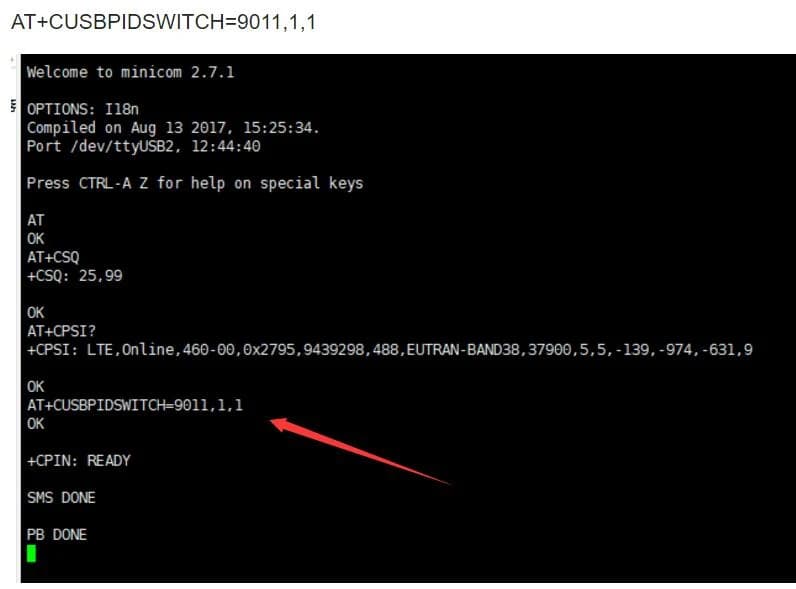

    The very first boot with a new modem takes about 40-50 seconds longer than usual: the mode switch is written to the modem's own memory, so it only happens once. Every boot after that connects straight away.

    Haven't flashed yet? Grab the Aircast Flasher and follow the setup guide.

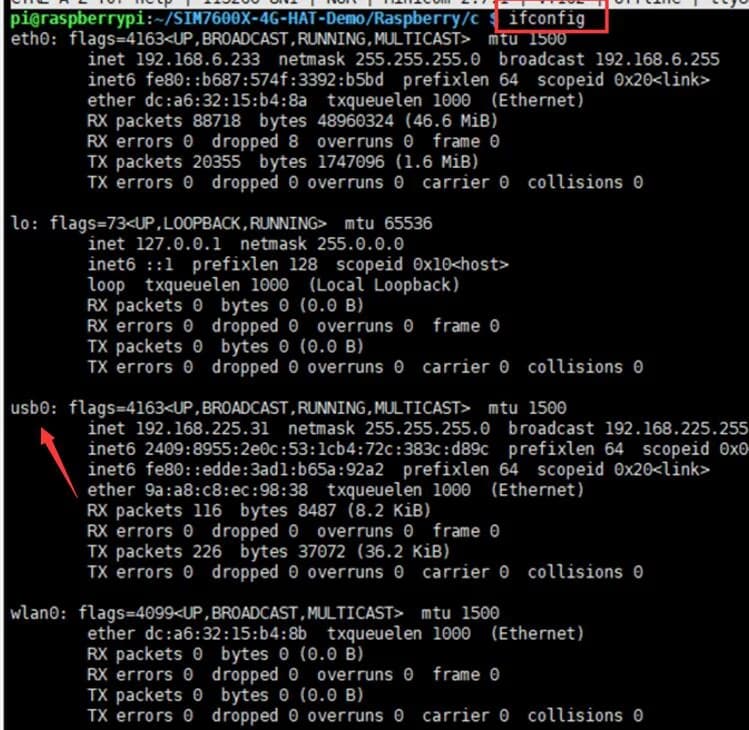

    3. Verify the link in the Device tab

    In the app the drone serves, open Settings → Device → Connection. The Cellular modem card reports the modem in real time: carrier, access technology (LTE), registration, signal strength with a chart, the APN in use, and the IP address it was assigned. The Data card beside it counts what the SIM has used. Once the modem card shows connected with an IP, your cellular uplink is live.

    The card appears once the modem is connected. If it is missing for the first minute of a fresh boot, that's the one-time QMI switch from step 2 finishing, so give it a moment.

    4. Set your carrier's APN (only if needed)

    The image ships with the internet APN, which most carriers accept. If yours needs a different one, the modem registers on the network but never gets a data connection.

    On a connected modem, change it in the Device tab, no terminal needed: Connection → Cellular modem → SIM & APN, enter your carrier's APN (and SIM PIN if the card is locked), and Save. Aircast re-dials the modem, so the link drops for a few seconds and comes back on the new APN.

    The Cellular modem card only shows while the modem has a data connection, so a carrier that refuses internet outright leaves nothing to edit there. Set the APN over SSH instead:

    On the device
    sudo nmcli connection modify cellular gsm.apn your.carrier.apn
    sudo nmcli connection up cellular

    For a PIN-locked SIM, add gsm.pin 1234 (your PIN) to the first command.

    Troubleshooting

    Most of what follows shows under Settings → Device → Connection, so start there.

    No modem detected

    • •Give a fresh boot up to a minute, since the one-time QMI switch is still running
    • •Reseat the HAT and the USB cable between the HAT and the Pi
    • •Confirm the power supply can drive the Pi and modem under load

    Registered but no data

    • •Wrong APN, so set your carrier's APN (step 4)
    • •SIM has no active data plan, or is out of balance
    • •SIM is PIN-locked, so enter the PIN (step 4)

    Weak signal

    • •Check both antennas are screwed on firmly
    • •Keep the LTE antenna clear of the frame, ESCs, and power leads
    • •Test in the open. The signal percentage is on the modem card

    Poor performance

    • •Watch for thermal throttling and keep the Pi cooled
    • •Higher access tech (LTE over 3G) and higher signal both help, as shown on the card
    • •Try a different physical location or antenna placement

    Support Resources

    Flash your card in about 5 minutes

    The Aircast Flasher downloads the image, sets Wi-Fi and hostname, and verifies the card.

    Download the Flasher
